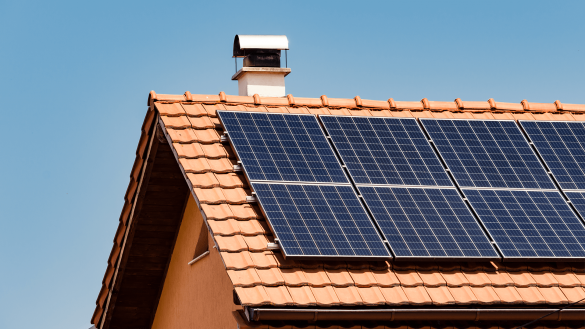

Cold climates present unique physical loads for residential and commercial rooftop solar arrays due to heavy snow accumulation. Static weight from compacted ice and drifting snow places immense downward stress on structural framing, while freeze-thaw cycles create dynamic mechanical forces along roof slopes. Selecting heavy-duty solar brackets for tile roof installations provides the mechanical strength needed to bridge structural loads safely directly into wooden rafters. Engineering suppliers like Antaisolar develop adjustable tile hooks that are designed to transfer loads into the supporting roof structure while maintaining appropriate clearance from the roof tiles.
Mechanics of Snow Mass Accumulation and Downward Load Paths
Snow accumulation on solar arrays creates significant downward static loads that vary according to snow density and moisture content. Wet, heavy snow can exert hundreds of kilograms per square meter, transferring immense force directly through panel frames into the racking framework. Structural engineers must map these load paths accurately to prevent localized bending, frame sagging, or structural failure across tile surfaces.
Point loads concentrated directly on fragile roofing tiles can easily crack clay or concrete covers, creating pathways for internal water leaks. Heavy-duty mounting hooks mitigate this risk by transferring panel weight over tile surfaces directly into primary wooden roof rafters. Distributing mechanical forces evenly through structural rafters safeguards both the building envelope and the photovoltaic modules mounted above.
Load-Bearing Capability and Material Selection for Sub-Zero Environments
Extremely low temperatures alter the mechanical properties of structural metals, increasing brittleness if sub-standard materials are utilized. High-yield stainless steel and heavy-gauge anodized aluminum offer the ideal combination of tensile strength, ductility, and corrosion resistance for freezing conditions. These advanced alloys retain structural flexibility under severe sub-zero thermal cycling without developing micro-cracks along load-bearing bends.
Selecting heavy-gauge stainless steel hooks allows structural systems to withstand significant snow drift buildup without experiencing plastic deformation. Installing high-strength structural components, such as those found in specialized Tile Roof Mounting Systems, provides the necessary rigidity required for alpine deployments. Appropriately sized structural members can limit deflection under the design snow loads, holding module tables at uniform heights above tile surfaces throughout winter months.
Adjustable Arm Designs and Pressure Isolation Technology
Irregular surfaces on clay or concrete roofs require specialized bracket geometry that adjusts for varying tile profiles and rafter depths. Heavy snow loads push downward on mounting arms, threatening to force the metal bracket arm into direct contact with the underlying tile edge. Incorporating height-adjustability into the hook arm allows installers to maintain precise clearance gaps above tile surfaces.
Maintaining an adequate air gap between the mounting hook and the tile surface prevents direct contact under maximum snow deflection limits. Utilizing adjustable solar brackets for tile roof projects allows installation crews to fine-tune bracket height across uneven wooden framing. Isolating mechanical pressure protects delicate slate and clay materials from cracking under intense static snow weight.
Freeze-Thaw Dynamics and Waterproof Flashing Integrity
Meltwater flowing beneath solar arrays often refreezes around mounting penetrations, creating ice dams that exert multi-directional forces on waterproofing seals. As ice expands within structural gaps, low-grade rubber washers or improper flashing materials can break down, leading to subtle roof leaks over time. Engineered tile mounting systems incorporate specialized metal flashing plates and durable EPDM grommets designed to withstand continuous freeze-thaw expansion.
Replacing lifted tiles with form-fitting aluminum flashing plates creates a seamless physical barrier that channels meltwater away from wooden structural rafters. These metal sub-flashing plates integrate smoothly into existing tile patterns, resisting displacement caused by expanding ice sheets. Combining metal sub-flashing with high-torque wood screws prevents water ingress around rafter penetration points during prolonged thawing cycles.
Dynamic Slide Forces and Lateral Rail Reinforcements
Sloping tiled roofs experience significant lateral forces when large snow sheets begin sliding down module surfaces during warm afternoons. These sliding snow masses apply shear stress against panel frames, racking rails, and mounting brackets simultaneously. Secondary rail reinforcements and mid-clamp stop locks prevent modules from slipping out of alignment when heavy ice blocks slide downward.
Calculating lateral shear forces allows structural engineers to specify optimal bracket spacing intervals across the roof layout. Incorporating reinforced structural mounting hardware from Antaisolar allows installation teams to increase bracket density along lower roof eaves where snow accumulation reaches maximum density. Stiffening the primary racking framework protects solar modules from lateral dislocation during severe winter snowfalls.
Structural Calculations and Installation Quality Management
Executing long-lasting solar installations on tiled roofs in heavy snow zones requires combining rigorous structural calculations with precise field assembly. Engineering teams evaluate local snow load codes, roof pitch angles, and timber rafter capacities before specifying hook quantities per row. Using fewer brackets than specified or misaligning rafter attachments can create structural weak points under peak snow loads.
Pre-assembled mounting brackets and standardized fasteners streamline on-site assembly, minimizing human error during cold-weather installations. Field crews must apply specified torque limits to rafter lag bolts, verifying that structural connections seat firmly without splitting wooden supports. Implementing standardized quality control protocols maintains structural integrity, protecting building assets across decades of severe winter weathering.
Conclusion
Designing solar infrastructure for tiled roofs in high snow-load regions requires balancing material strength, adjustability, and waterproofing mechanics. Utilizing heavy-duty solar brackets for tile roof applications protects fragile clay, concrete, and slate tiles by transferring static and dynamic loads directly into primary roof timbers. Partnering with primary manufacturers such as Antaisolar provides EPC contractors, installers, and distributors with fully engineered tile mounting hardware built to endure extreme winter conditions while preserving building envelope integrity.
